Device Overview: QRD Vortex F5

QRD spent years making controllers and arcade pads — the Spark N5 gamepad and the Pro S3 hit pad are its best-known products — and the Vortex F5 is its first attempt at a full horizontal handheld. It lands in the most crowded corner of the market: a Rockchip RK3566 Linux device with a 5.5-inch 720p screen, priced at $119 direct (marked down from a $165 list) and floating around $90 to $110 on AliExpress. That puts it head-to-head with the Powkiddy X55 and the Anbernic RG353 family, which use the exact same chip. The pitch that sets it apart is Hall effect sticks and Hall triggers at this price, plus QRD’s controller heritage — though a controller pedigree does not automatically translate into good emulation firmware, and that is the part worth scrutinizing.

Emulation performance, generation by generation

The RK3566 is a quad-core Cortex-A55 clocked up to 1.8GHz with a Mali-G52 GPU. This is a modest, well-understood chip, not a pocket PC, so its ceiling is fixed and predictable. Everything 8-bit and 16-bit runs flawlessly through RetroArch — NES, SNES, Genesis, PC Engine, Master System — as do the handhelds up to and including Game Boy Advance. PlayStation 1 is full speed across the board through PCSX-ReARMed. Arcade is a strength: NeoGeo, CPS1/2/3 and the broader FBNeo set run without drama. From there the cracks show. Nintendo 64 is the perennial soft spot on Mali hardware — Super Mario 64 and Ocarina of Time are playable through Mupen64Plus, but Rare-heavy titles like Conker and Perfect Dark stutter and glitch. Dreamcast via Flycast handles Crazy Taxi, Sonic Adventure and Ikaruga well, while Shenmue and the heavier fighters are less consistent. PSP through PPSSPP is the true ceiling: 2D and lighter 3D games such as Daxter or Tekken 6 are enjoyable, but God of War and other demanding titles need frameskip and still dip below full speed. Saturn, the hardest 32-bit system to emulate, is hit-or-miss on this class of chip and should not be a reason to buy. One real constraint compounds all of this: just 1GB of LPDDR4X RAM. It is enough for RetroArch, but it leaves no headroom for run-ahead on heavy cores, and it rules out a comfortable Android layer.

Screen, build and controls

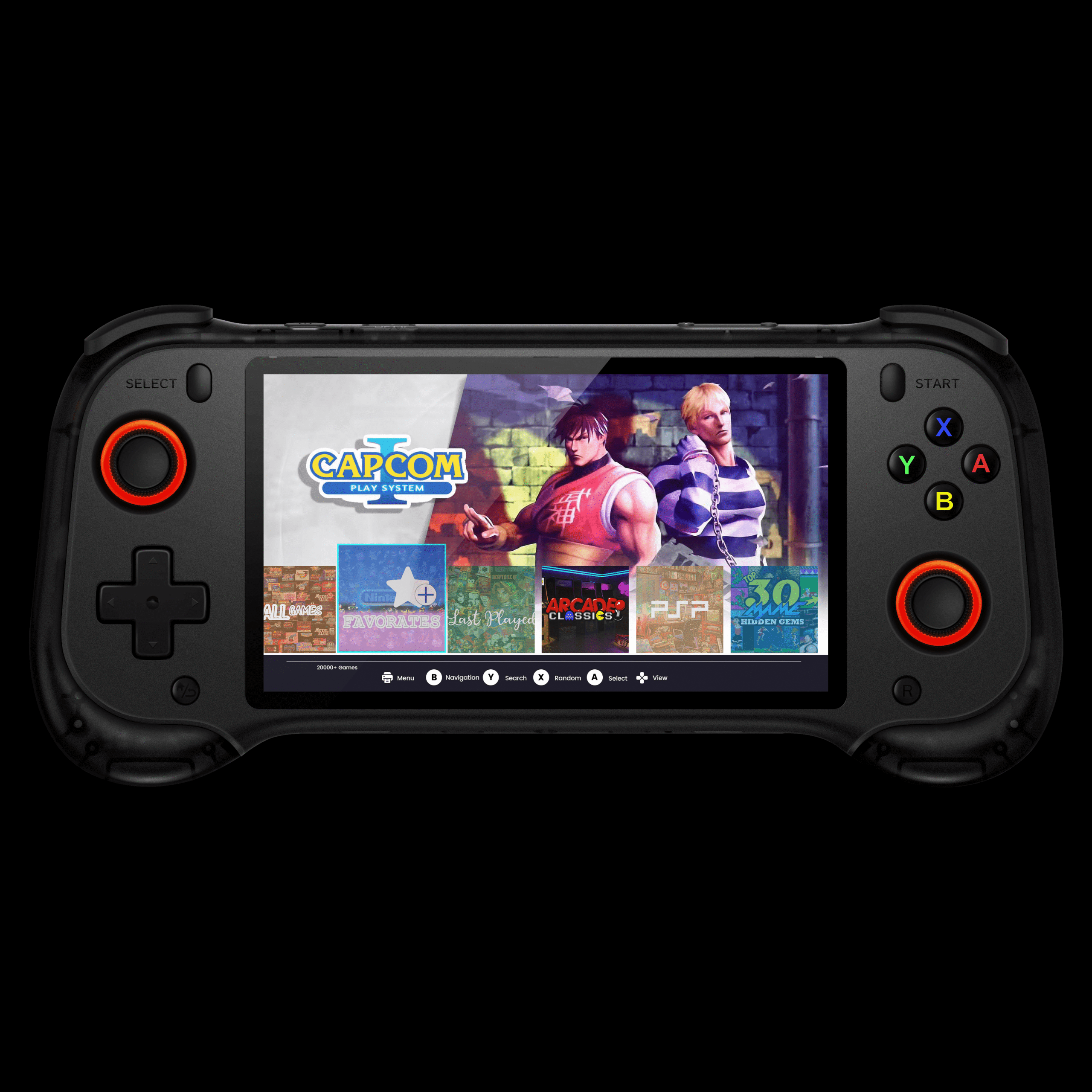

The 5.5-inch IPS panel runs at 1280×720 and is OCA-laminated (“Full Fit”), so there is no air gap between glass and pixels — a genuine step up from the cheaper bonded-with-a-gap panels on budget rivals. The 16:9 shape is a double-edged thing: it pillarboxes every 4:3 retro system, wasting glass on the sides, but it is a natural fit for PSP’s native widescreen and for HDMI output to a TV. The body is a large plastic slab, 223mm wide and 330g, with pronounced rear grips; it is comfortable to hold but not pocketable. The headline features are the Switch-style offset Hall effect joysticks, which resist the drift that plagues potentiometer sticks, and Hall triggers that give you analog L2/R2 — useful for N64 and PSP racers. Rounding it out are a cross D-pad, dual speakers, a 3.5mm headphone jack, a mini HDMI output and USB-C charging, plus external controller support. Wi-Fi and Bluetooth are not clearly confirmed in QRD’s own spec sheet, so treat wireless netplay or pad pairing as unverified until a unit is in hand.

Software and setup

The Vortex F5 ships with a Linux emulation frontend on 8GB of eMMC, with ROMs living on a microSD card. The stock software from a first-time handheld maker is the biggest question mark; QRD’s accessory experience does not guarantee a polished on-device experience, and early reviewers flagged firmware as the wildcard. The saving grace is the RK3566 lineage. This SoC is a well-trodden target, so the mature custom firmwares — ArkOS, ROCKNIX (formerly JELOS) and Batocera — should boot with little effort, and reviewers expect exactly that. One honest caveat on the popular alternatives: muOS and Knulli are built for the Allwinner H700 class of devices, like the RG35XX line, not this Rockchip chip, so do not expect those specific firmwares here. Plan on flashing ArkOS or ROCKNIX to get the best out of the hardware rather than relying on what comes in the box.

Price, value and who it is for

At $119 official and roughly $90 to $110 imported, the Vortex F5 is priced squarely against the Powkiddy X55 and the Anbernic RG353 series. The corners QRD cut to hit that number are visible in the 1GB of RAM and the small 8GB internal storage, where 2GB rivals give you more breathing room. Buy it if you want a big, sharp 720p horizontal screen for PS1, arcade and the full run of handheld libraries, and you value drift-proof Hall sticks over guaranteed high-end emulation. Skip it if your want list is reliable N64, Dreamcast and full-speed PSP, or if you would rather not flash custom firmware to get there. As a debut device it is a credible, honest RK3566 handheld — just do not expect it to punch above the chip inside it.
