Device Overview: Nintendo New 3DS

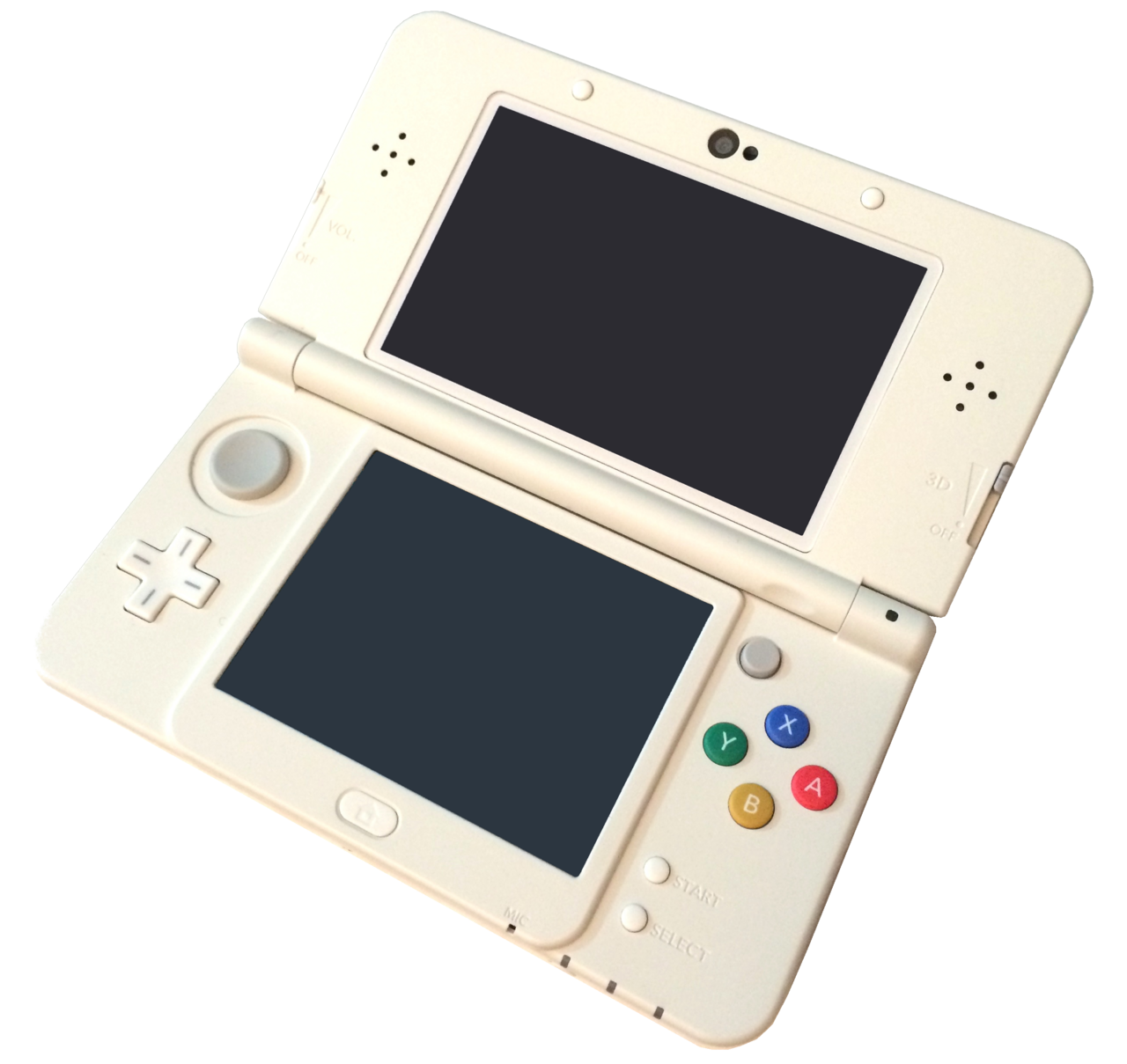

The Nintendo New 3DS is the compact, faceplate-swapping member of the “New” 3DS refresh that Nintendo shipped in Japan on 11 October 2014 for ¥16,000 and rolled out to Europe and Australia on 13 February 2015. It is the small one: 142 mm wide, 253 grams, with interchangeable cover plates rather than the fixed metallic shell of the New 3DS XL. North America never got it as a plain standalone at launch, the XL was the region’s default at $199.99, and the small model only arrived on 25 September 2015 inside a $219.99 Animal Crossing: Happy Home Designer bundle. That regional quirk is why the standard New 3DS feels rarer in the US than its size and age suggest.

The hardware and its library

Under the hood this is a genuinely different machine from a 2011 3DS, not a cosmetic reissue. The CPU jumps from a dual-core ARM11 at 268 MHz to a quad-core ARM11 MPCore clocked at 804 MHz, RAM doubles to 256 MB, and VRAM grows to 10 MB, all driving the same DMP PICA200 GPU. Nintendo used that headroom for faster eShop and browser loading, snappier menus, and a handful of titles the old hardware simply cannot run: Xenoblade Chronicles 3D is New-only, and SNES Virtual Console (Super Mario World, EarthBound, A Link to the Past) was locked to this generation. It also added a right-hand C-Stick nub, ZL and ZR shoulder buttons, built-in NFC for amiibo, and “Super-Stable 3D,” which uses the inner camera to track your face so the autostereoscopic effect stops collapsing when you move your head. The library is the real reason to own one: A Link Between Worlds, Fire Emblem Awakening and Fates, Pokemon X/Y through Ultra Sun/Ultra Moon, Monster Hunter 4 Ultimate and Generations, Animal Crossing: New Leaf, Kid Icarus: Uprising, Bravely Default, plus full backward compatibility with the entire DS and DSi catalogs.

Homebrew, custom firmware and emulation

The 3DS scene is mature and, unusually, both free and flashcart-free. Following 3ds.hacks.guide, a software exploit (SSLoth-Browser, or safecerthax and ntrboot on locked units) installs boot9strap and then Luma3DS, the de-facto custom firmware. Every firmware version up to the final 11.17 is exploitable, so a used unit’s system menu number is no barrier. From there the Homebrew Launcher, FBI, GodMode9, Checkpoint and Universal-Updater cover installs, backups and saves. For retro emulation the New 3DS is the best of the family precisely because of that quad-core chip: RetroArch cores handle NES, SNES (snes9x runs far closer to full speed here than on an old 3DS), Game Boy and Game Boy Color, Master System, Genesis via PicoDrive, and PC Engine comfortably. Game Boy Advance is the standout, open_agb_firm runs GBA ROMs on the console’s real GBA-compatible silicon in DS mode, so it is native playback rather than emulation. DS titles likewise run natively, and TWiLight Menu++ with nds-bootstrap loads them straight off the microSD card. Be honest about the ceiling, though: Nintendo 64 and PlayStation are rough. mupen and PCSX-ReARMed exist but choke on anything demanding, so treat N64 and PS1 as a bonus for light titles, not a headline feature.

Screen, build and revisions

The clamshell carries a 3.88-inch autostereoscopic top screen at 800×240 (400×240 per eye for the glasses-free 3D) and a 3.33-inch resistive touchscreen at 320×240 below. Both are LCD, and there is a genuine lottery here: Nintendo mixed IPS and TN panels across production, so two identical-looking units can differ noticeably in viewing angle and black level. The cover plates are the signature feature, 38 designs existed at the Japanese launch, and swapping them means removing the back plate with a small screwdriver, which is also the only way to reach the microSD slot (a 4 GB card is included, alongside 1 GB of internal storage). The battery is a 1400 mAh cell rated at roughly 3.5 to 6 hours on 3DS software and up to 10.5 hours on DS games. One notable stinginess: no AC adapter in the box in Japan and Europe, since Nintendo assumed you were upgrading from an older 3DS.

Collecting, price and who it is for

The eShop shut for good in March 2023, so digital purchases are over; anything you want now comes from cartridges, pre-existing accounts, or homebrew. On the used market the small New 3DS has quietly become the enthusiast’s pick, its portability and swappable plates push prices above the more common XL, and clean boxed units with sought-after cover plates command real premiums. If you want the largest screen and the biggest battery, buy the XL or the later New 2DS XL instead. But if you value pocketability, a machine that plays the whole 3DS and DS libraries, and the single best 3DS for RetroArch cores and native GBA, the standard New 3DS is the one to hunt down, ideally an IPS-panel unit, and ideally one you plan to soft-mod on day one.
